MUD RECYCLERS
Mud Puppy offers a range of options to meet the demands of your specific drilling projects. Our distinct Mud Puppy Mud Recyclers help you save time, water and money. Please don’t hesitate to ask us which unit will work best for you. Our knowledgeable staff will help you determine what is best for your crud cleaning needs.
MUD PUPPY 85 – RIG
Process and Clean up to 250 Gallons/Minute of Drill Mud
400 Gallon Patented Mud Puppy Mud Tank
-
2’ x 3’ Double Shaker Screen: Bottom 10 Mesh / Top 100 Mesh
Two 5” Desander Cones
2” x 3” 118 Centrifugal Mud Pump set at 30 - 35 PSI
8” Sand Guzzler pick up pump
Complete Hydraulic System

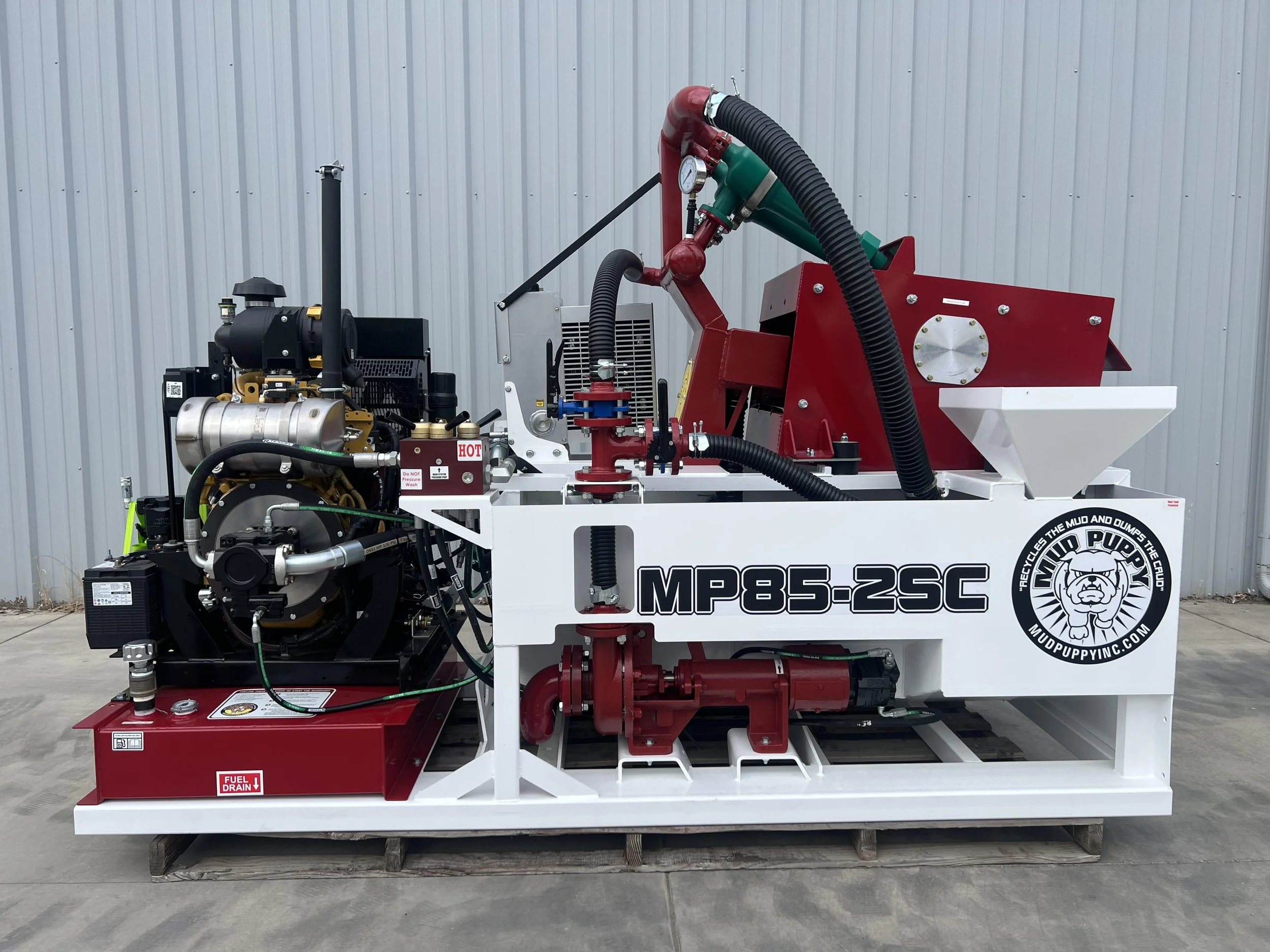

MUD PUPPY 85 – 2SC
Process and Clean up to 250 Gallons/Minute of Drill Mud
400 Gallon Patented Mud Puppy Mud Tank
-
2’ x 3’ Double Shaker Screen: Bottom 10 Mesh / Top 100 Mesh
Two 5” Desander Cones
2” x 3” 118 Centrifugal Mud Pump set at 30 - 35 PSI
8” Sand Guzzler pick up pump
Caterpillar 2.2 Cylinder Diesel Engine - 49 horsepower
Complete Hydraulic System
MUD PUPPY 85-2SCT
(Track System)
Process and Clean up to 250 Gallons/Minute of Drill Mud
400 Gallon Patented Mud Puppy Mud Tank
-
2’ x 3’ Double Shaker Screen: Bottom 10 Mesh / Top 100 Mesh
Two 5” Desander Cones
2” x 3” 118 Centrifugal Mud Pump set at 30 - 35 PSI
8” Sand Guzzler pick up pump
Caterpillar 2.2 Cylinder Diesel Engine - 49 horsepower
Complete Hydraulic System
Increased Mobility // Remote and On-Unit Controls
MUD PUPPY 170 – 2SC
Process and Clean up to 350 Gallons/Minute of Drill Mud
600 Gallon Patented Mud Puppy Mud Tank
-
3’ x 5’ Double Shaker Screen: Bottom 10 Mesh / Top 100 Mesh
Two, three or four 5” Desander Cones
2” x 3” 118 Centrifugal Mud Pump set at 30 - 35 PSI
9” patented Tetra Greene Sand Guzzler pick up pump
Caterpillar 2.8 Cylinder Diesel Engine - 74 horsepower
Complete Hydraulic System

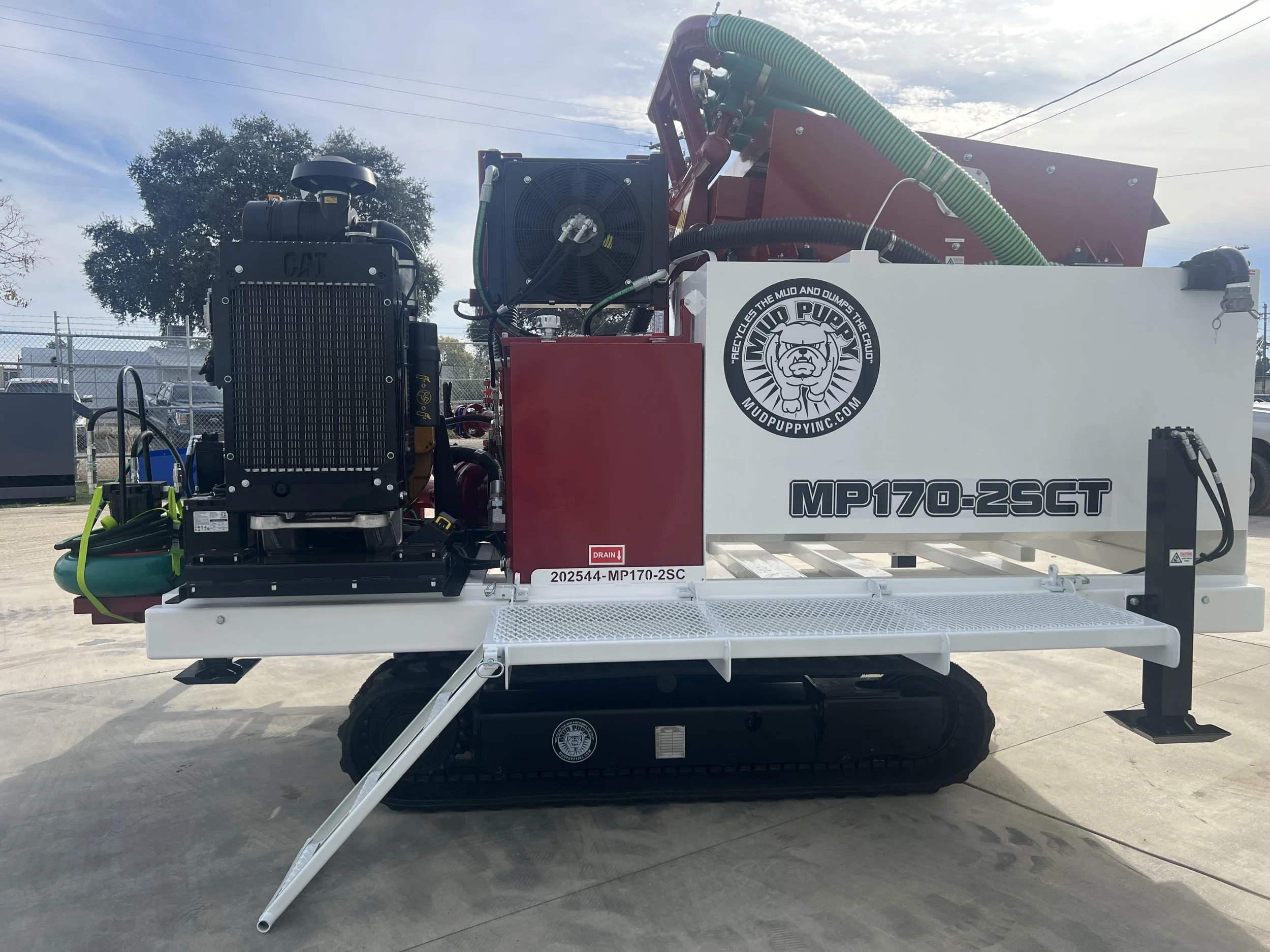

MUD PUPPY 170-2SCT
(Track System)
Process and Clean up to 350 Gallons/Minute of Drill Mud
600 Gallon Patented Mud Puppy Mud Tank
-
3’ x 5’ Double Shaker Screen: Bottom 10 Mesh / Top 100 Mesh
Two, three or four 5” Desander Cones
2” x 3” size 1-1/8” Centrifugal Mud Pump set at 30 - 35 PSI
9” patented Tetra Greene Sand Guzzler pick up pump
Caterpillar 2.8 Cylinder Diesel Engine - 74 horsepower
Complete Hydraulic System
Increased Mobility // Remote and On-Unit Controls
MUD PUPPY 170 – HDD
Process and Clean up to 350 Gallons/Minute of Drill Mud
600 Gallon Patented Mud Puppy Mud Tank
-
3’ x 5’ Double Shaker Screen: Bottom 10 Mesh / Top 100 Mesh
Two, three or four 5” Desander Cones
2” x 3” 118 Centrifugal Mud Pump set at 30 - 35 PSI
Additional 2” x 3” 118 Centrifugal Mud Pump
*200 gallons per minute at 30 PSI w/ 2” Discharge Manifold Sample Port & 0-100 PSI gauge (Flange to 90 to 2” Companion Flange w/Valve)
9” patented Tetra Greene Sand Guzzler pick up pump
Caterpillar 2.8 Cylinder Diesel Engine - 74 horsepower
Complete Hydraulic System

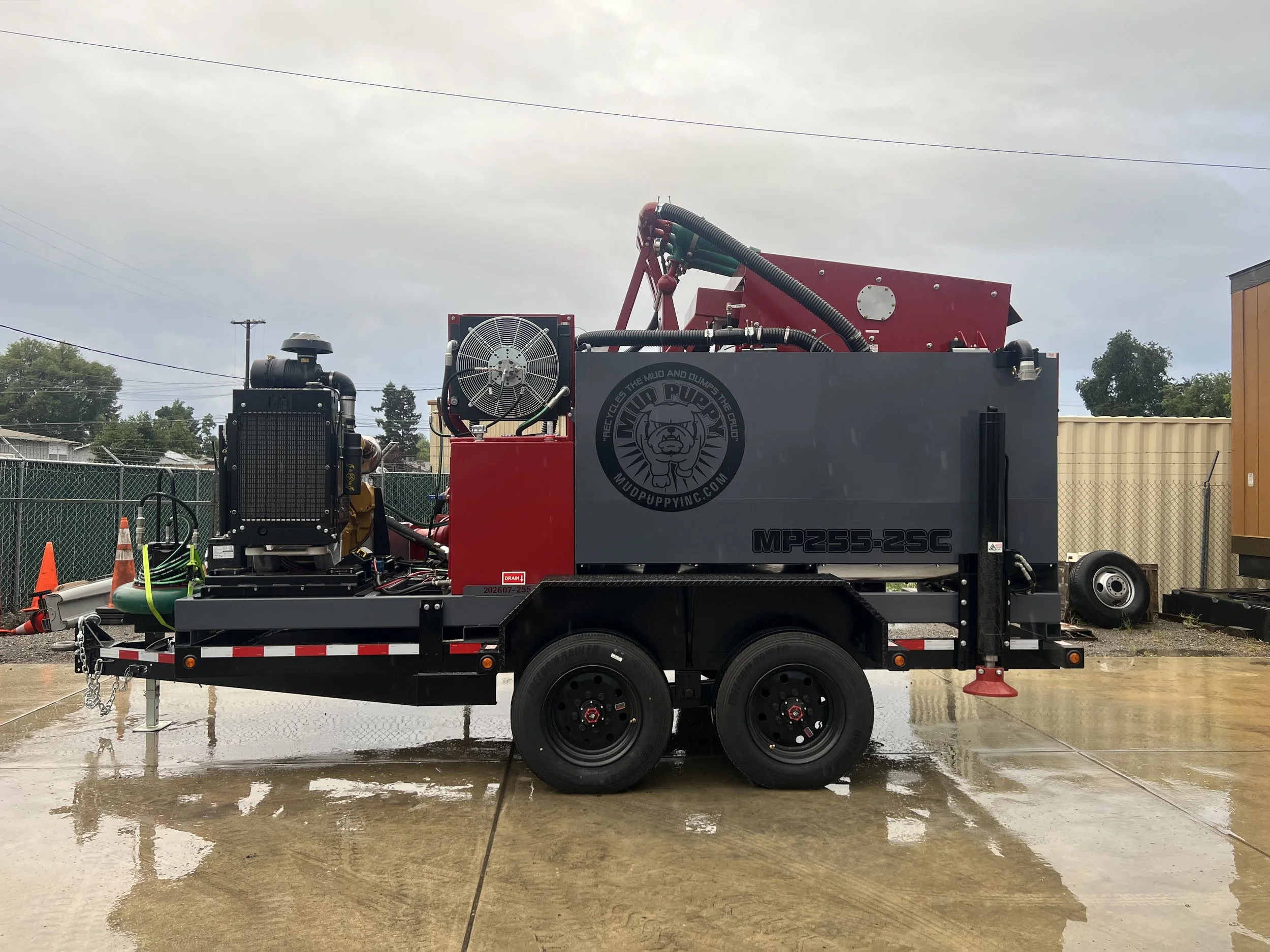

MUD PUPPY 255-2SC
Process and Clean up to 500 Gallons/Minute of Drill Mud
1000 Gallon Patented Mud Puppy Mud Tank
-
4’ x 5’ Double Shaker Screen: Bottom 10 Mesh / Top 100 Mesh
Three, four or five 5” Desander Cones
2” x 3” 118 Centrifugal Mud Pump set at 30 - 35 PSI
11” patented Tetra Greene Sand Guzzler pick up pump
Caterpillar 2.8 Cylinder Diesel Engine - 74 horsepower
Complete Hydraulic System
MUD PUPPY 255-100
Process and Clean up to 500 Gallons/Minute of Drill Mud
1000 Gallon Patented Mud Puppy Mud Tank
-
4’ x 5’ Double Shaker Screen: Bottom 10 Mesh / Top 100 Mesh
Three, four or five 5” Desander Cones
2” x 3” 118 Centrifugal Mud Pump set at 30 - 35 PSI
3” x 4” x 13” Centrifugal Mud Pump set at 200 PSI at 500 gallons/minute, 100 horsepower
11” patented Tetra Greene Sand Guzzler pick up pump
Caterpillar 7.1 Cylinder Diesel Engine - 254 horsepower
Complete Hydraulic System

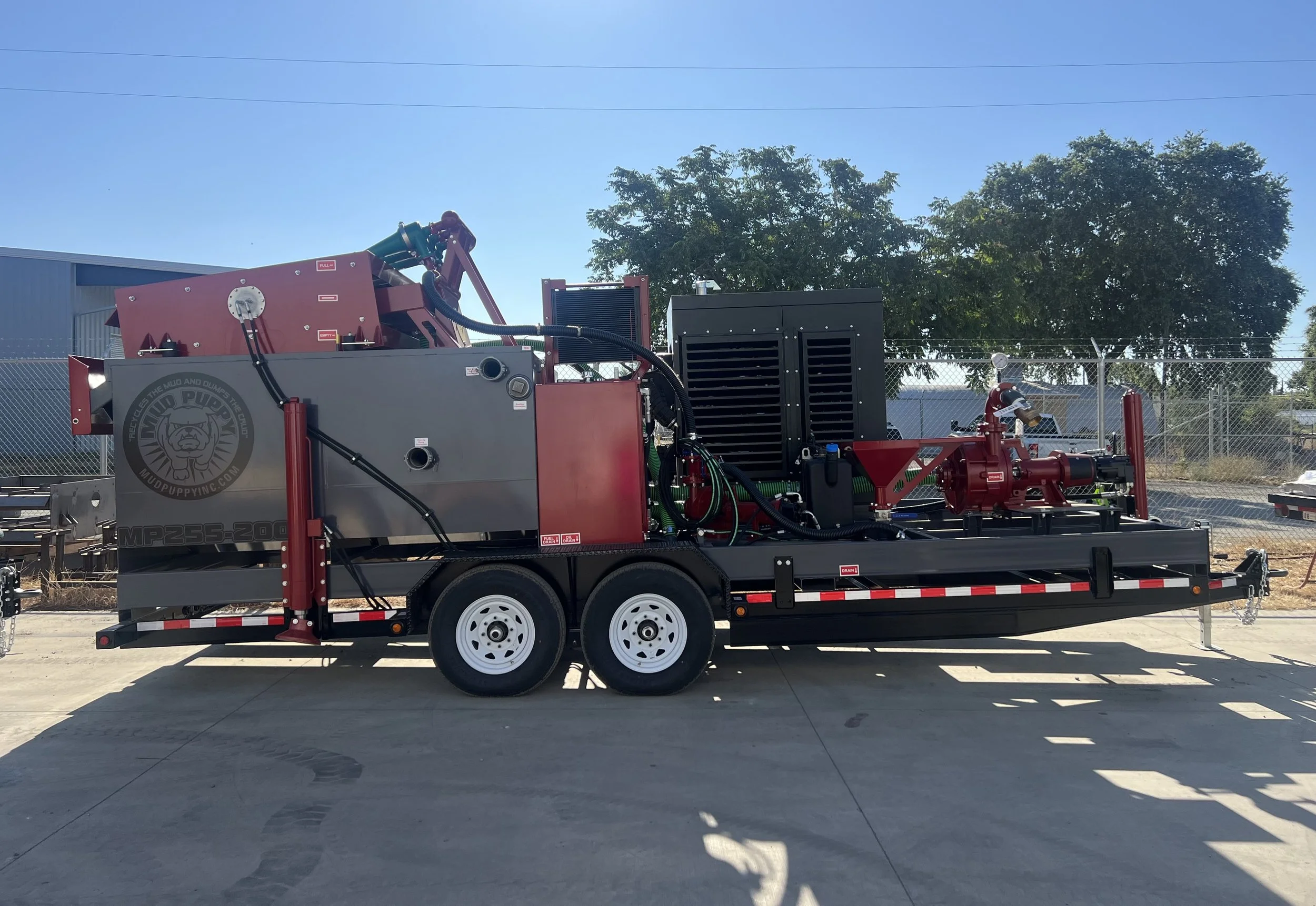

MUD PUPPY 255-200
Process and Clean up to 500 Gallons/Minute of Drill Mud
1000 Gallon Patented Mud Puppy Mud Tank
-
4’ x 5’ Double Shaker Screen: Bottom 10 Mesh / Top 100 Mesh
Three, four or five 5” Desander Cones
2” x 3” 118 Centrifugal Mud Pump set at 30 - 35 PSI
3” x 4” x 13” Dual Stage Centrifugal Mud Pump
11” patented Tetra Greene Sand Guzzler pick up pump
Caterpillar 7.1 Cylinder Diesel Engine - 275 horsepower
Complete Hydraulic System
MUD PUPPY 255-400
Process and Clean up to 500 Gallons/Minute of Drill Mud
1000 Gallon Patented Mud Puppy Mud Tank
-
4’ x 5’ Double Shaker Screen: Bottom 10 Mesh / Top 100 Mesh
Three, four or five 5” Desander Cones
2” x 3” size 1-1/8” Centrifugal Mud Pump set at 30 PSI
Centerline Triplex Pump 7.5” x 10” - 400 PSI at 450 gallons/minute
11” patented Tetra Greene Sand Guzzler pick up pump
Caterpillar 7.1 Cylinder Diesel Engine - 254 horsepower
Complete Hydraulic System

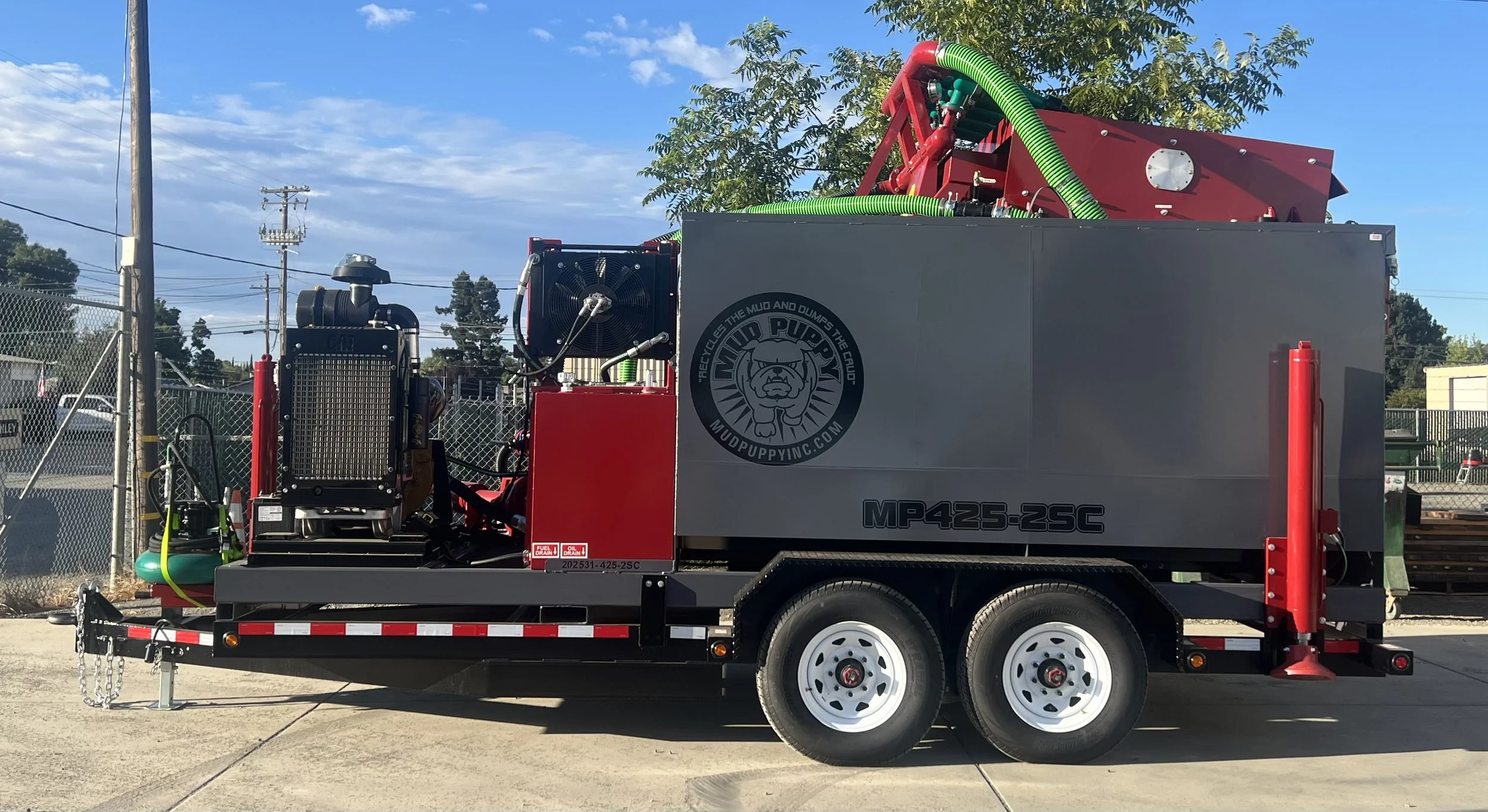

MUD PUPPY 425-2SC
Process and Clean up to 500-700 Gallons/Minute of Drill Mud
2000 Gallon Patented Mud Puppy Mud Tank
-
4’ x 5’ Double Shaker Screen: Bottom 10 Mesh / Top 100 Mesh
4” & 6” Flange Connections
Five 5” Desander Cones
4” x 3” 118 Centrifugal Mud Pump set at 30 - 35 PSI
11” patented Tetra Greene Sand Guzzler pick up pump
Caterpillar 2.8 Cylinder Diesel Engine - 74 horsepower
Complete Hydraulic System

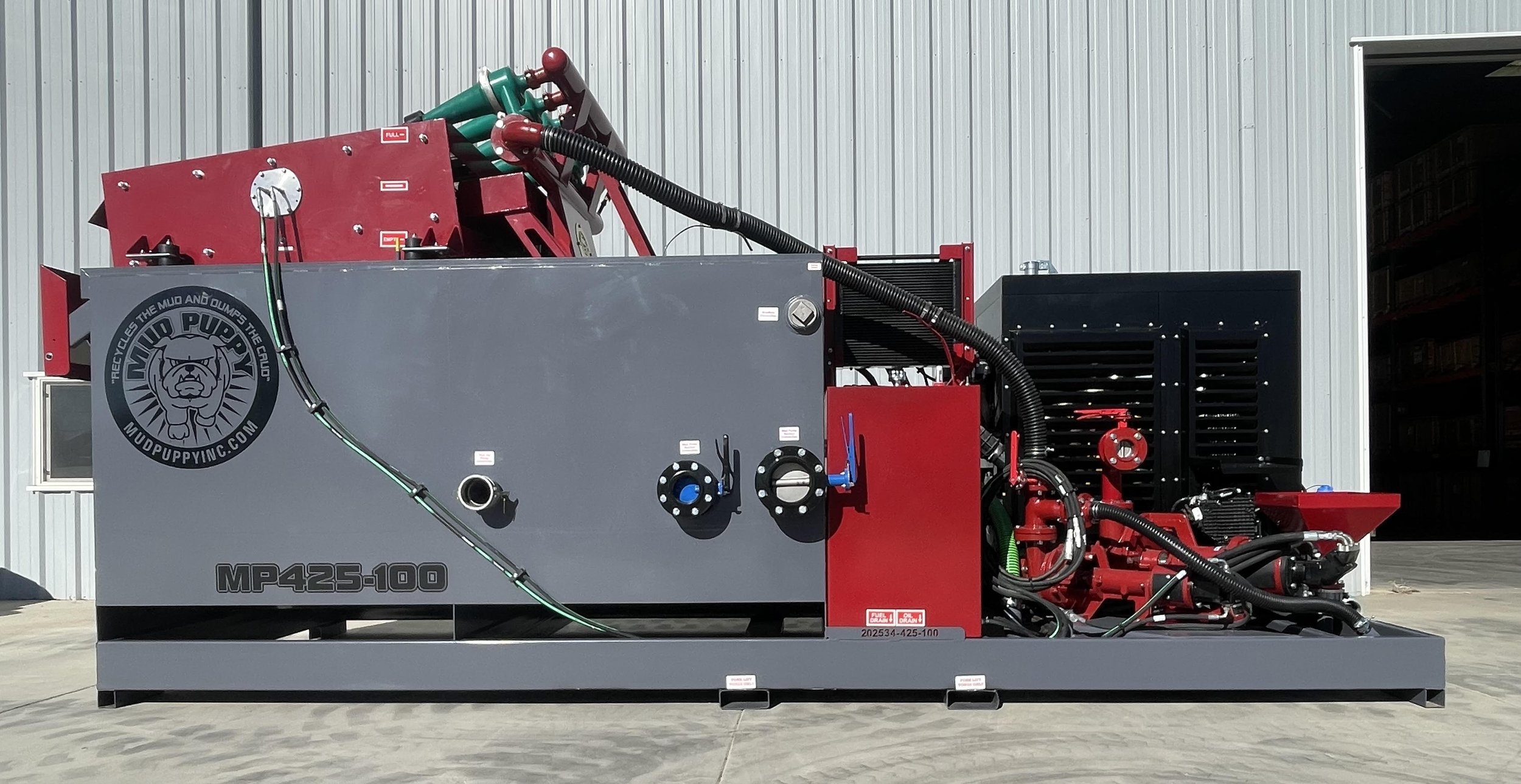

MUD PUPPY 425-100
Process and Clean up to 500 Gallons/Minute of Drill Mud
2000 Gallon Patented Mud Puppy Mud Tank
-
4’ x 5’ Double Shaker Screen: Bottom 10 Mesh / Top 100 Mesh
4” & 6” Flange Connections
Five 5” Desander Cones
4” x 3” 118 Centrifugal Mud Pump set at 30 - 35 PSI
11” patented Tetra Greene Sand Guzzler pick up pump
Caterpillar 2.8 Cylinder Diesel Engine - 74 horsepower
Complete Hydraulic System
